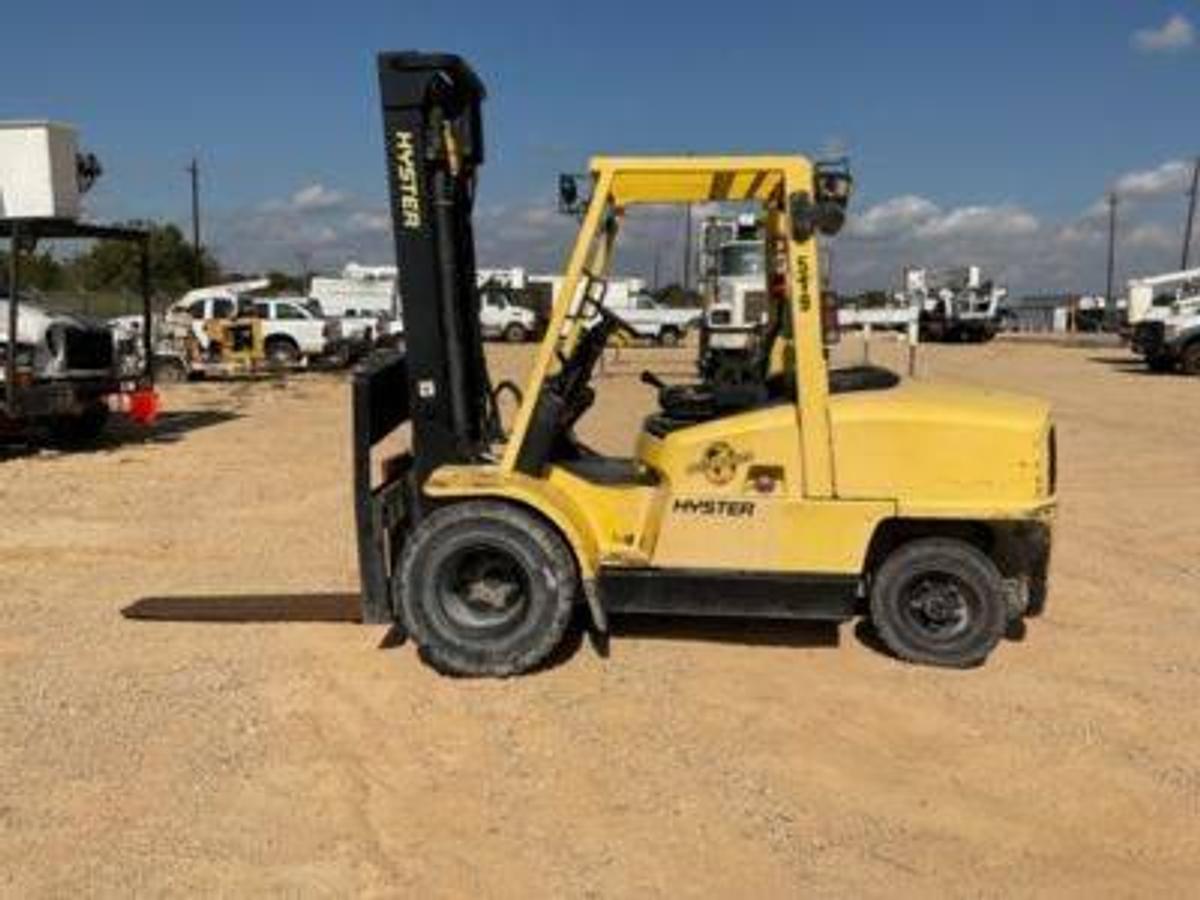

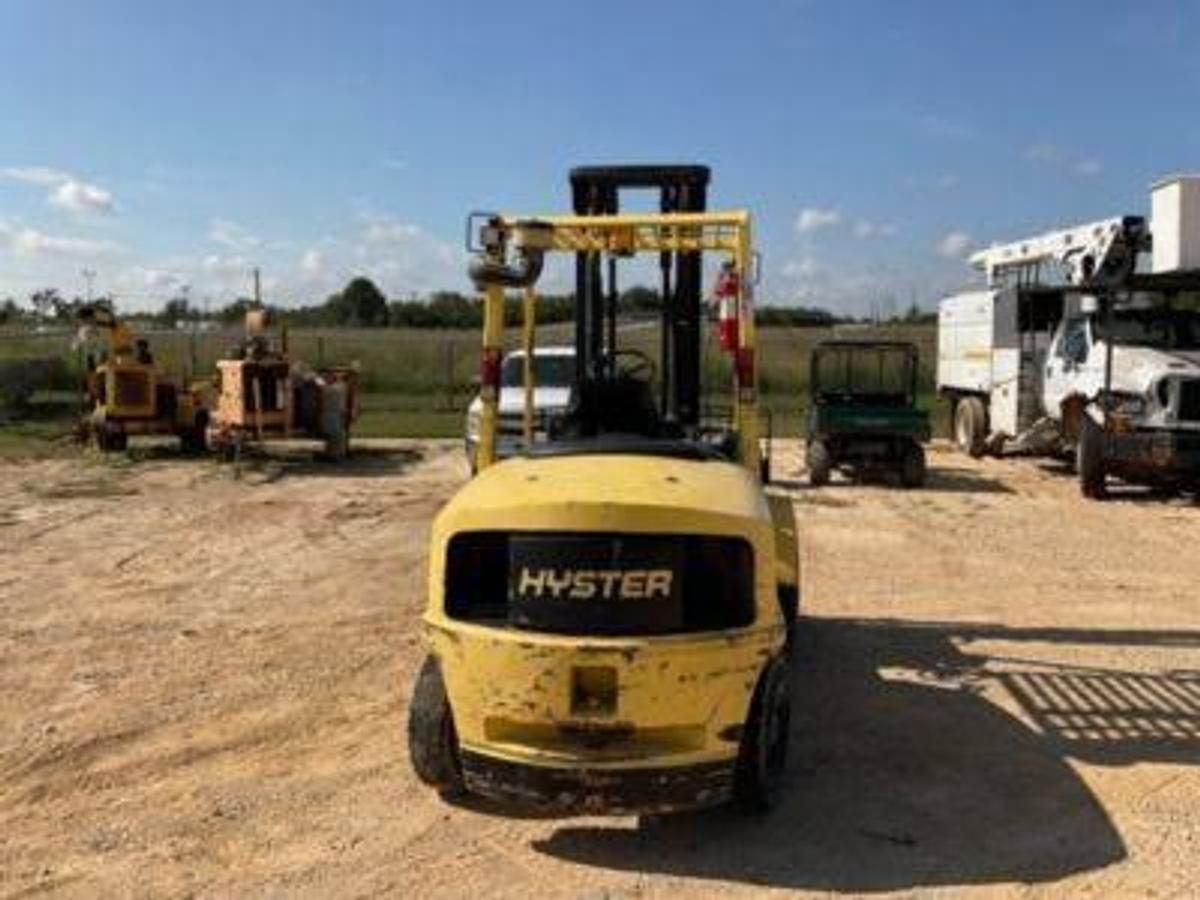

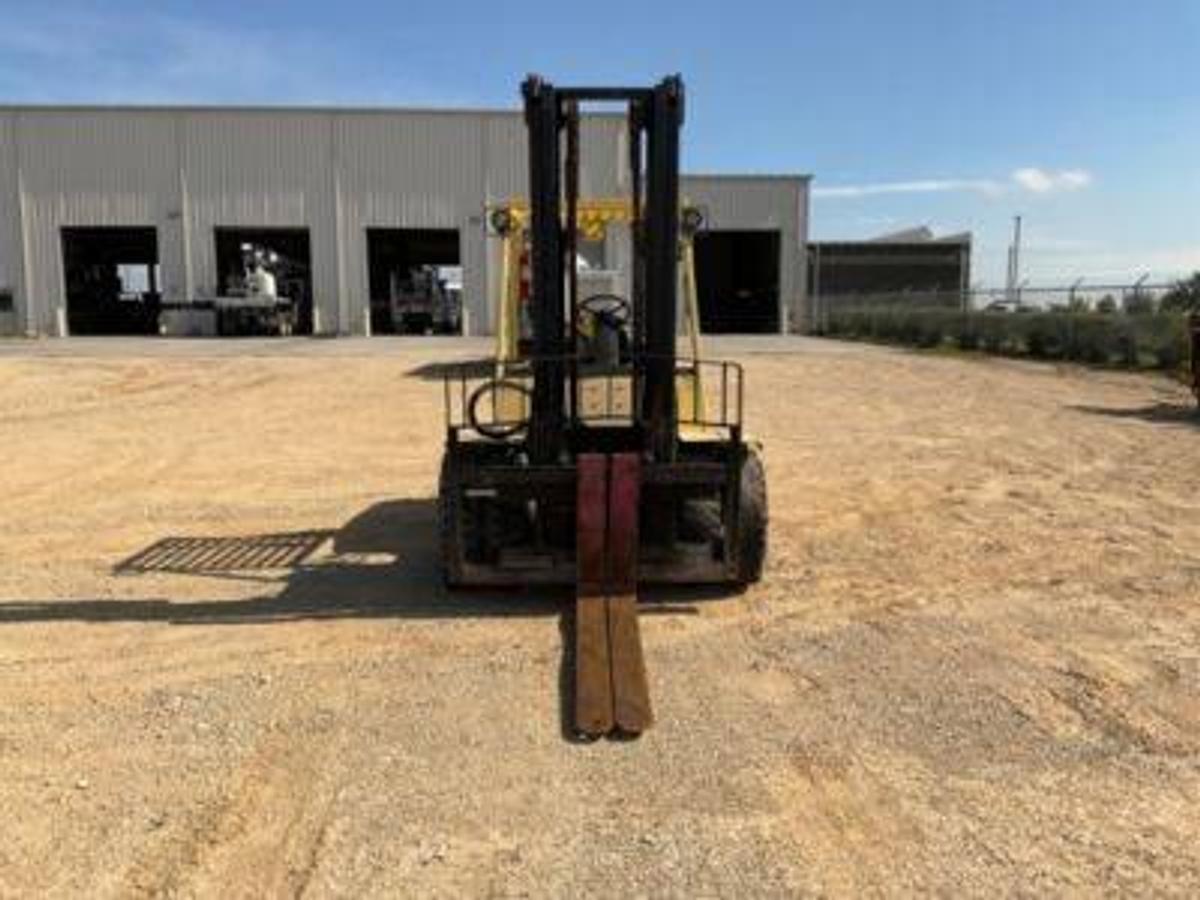

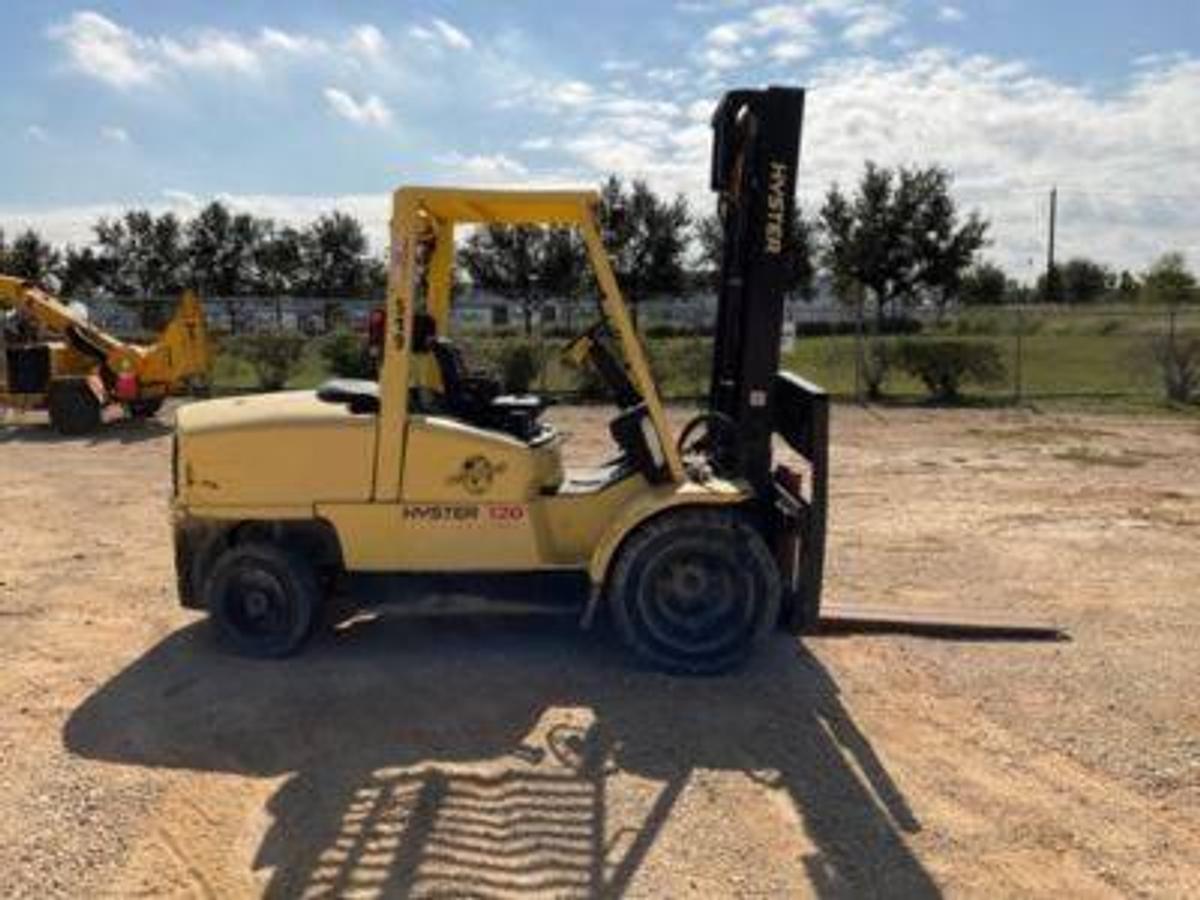

2001 Hyster H120XM

2001 Hyster H120XM

or
Call 346-646-3558

Description

LEGAL NOTICE:

  • The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate.
  • This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors.
  • We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer.
  • The information presented should not be considered definitive or relied upon as the sole basis for decision-making.
  • In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example:
  • Masts and forks are routinely changed or updated.
  • Headlights, taillights, and backup alarms are usually included with new equipment but can be removed over time.
  • Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided.
  • By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided.
  • For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.


  • General Information
  • Manufacturer: Hyster
  • Model Number: H120XM
  • Type: Forklift
  • Dimensions
  • Length to Fork Face: 122 inches
  • Overall Width: 56 inches
  • Height to Top of Overhead Guard: 108 inches
  • Wheelbase: 80 inches
  • Ground Clearance: 8 inches
  • Performance
  • Load Capacity: 12,000 lbs
  • Travel Speed: approx. 12 mph (laden)
  • Lifting Speed: approx. 110 feet/min (laden)
  • Lowering Speed: approx. 115 feet/min (laden)
  • Powertrain
  • Engine Type: Diesel
  • Engine Manufacturer: Cummins
  • Engine Power: 120 HP
  • Transmission Type: Powershift
  • Number of Speeds: 3 forward / 3 reverse
  • Tires
  • Tire Type: Pneumatic
  • Tire Size Front: 28 x 12 - 24
  • Tire Size Rear: 28 x 12 - 24
  • Brakes
  • Service Brake: Hydraulic
  • Parking Brake: Mechanical
  • Hydraulic System
  • Hydraulic Tank Capacity: 17 gallons
  • Forks
  • Fork Length: Varies
  • Other Features
  • Operator Presence System
  • Adjustable Steering Wheel
  • Comfortable Operator Seat

    • Show All

    Specifications

    ManufacturerHyster
    ModelH120XM
    Year2001
    ConditionUsed
    Serial NumberK005V04275Y
    Stock Number4275Y
    Capacity12000
    MastTwo Stage
    Mast Spec111/157
    FuelDiesel
    Side ShifterYes

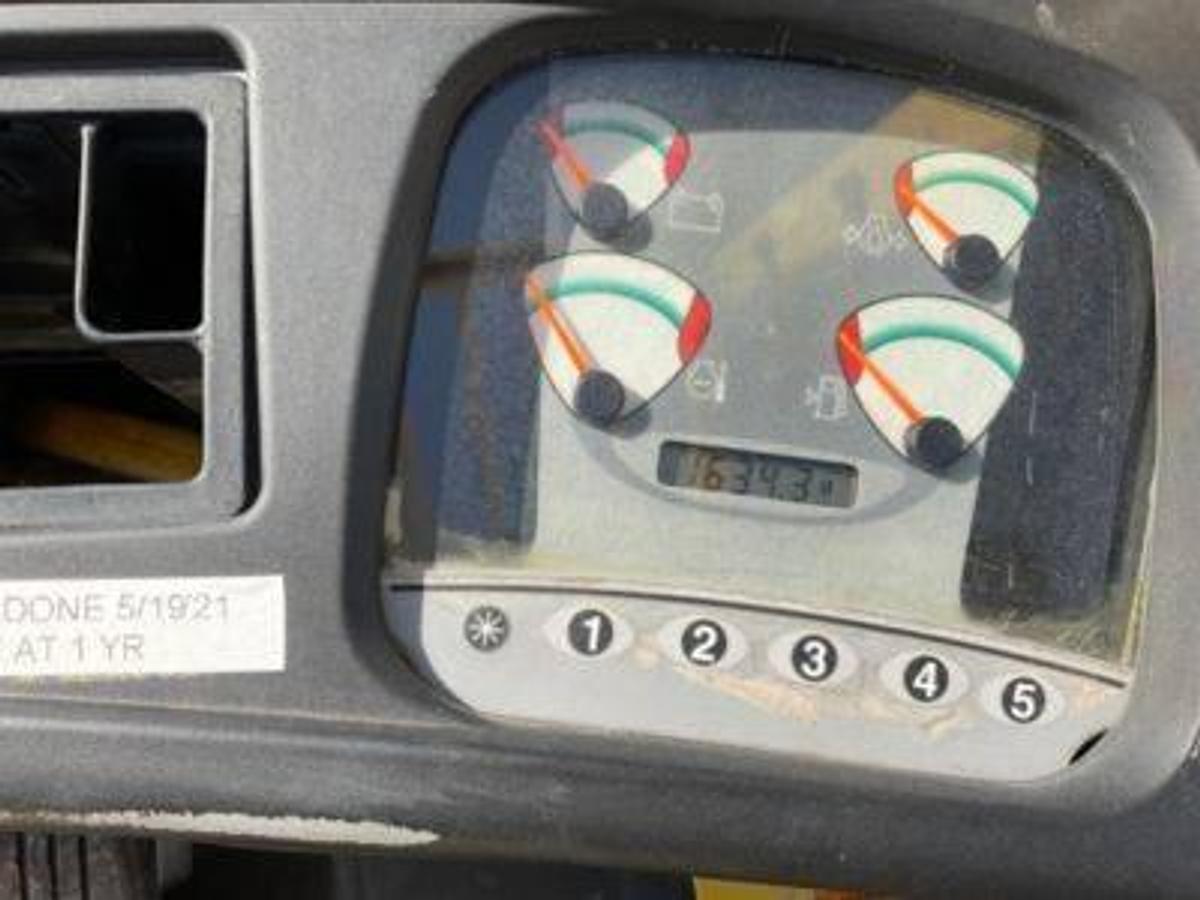

    Hours1634
