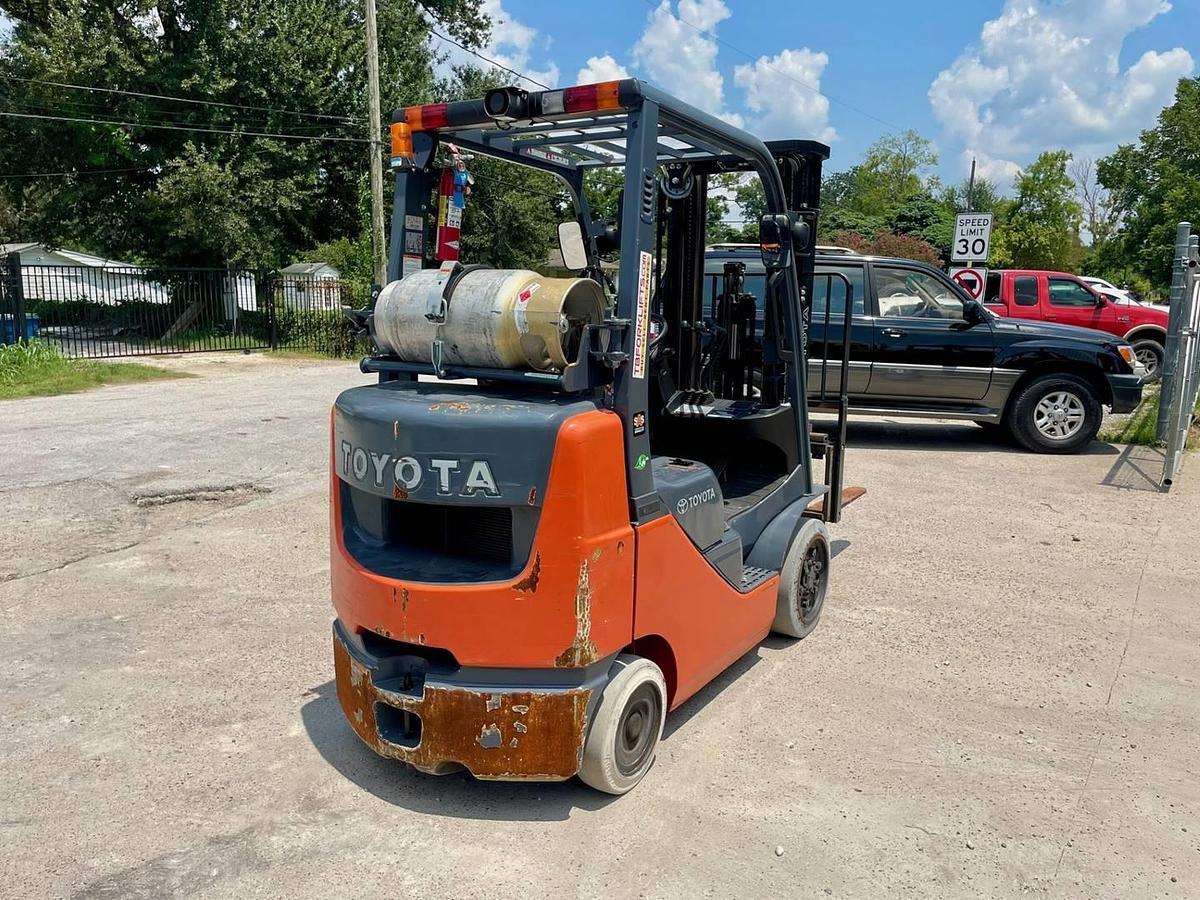

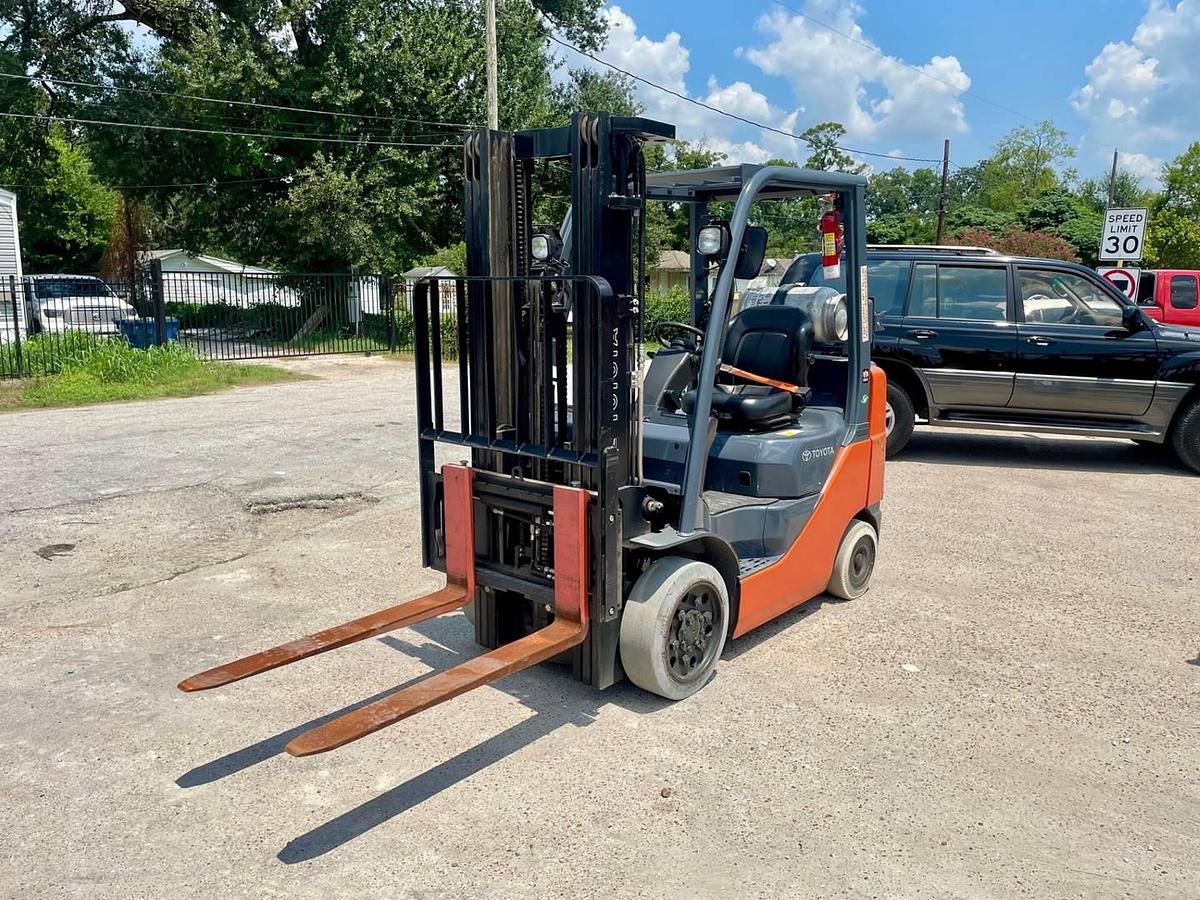

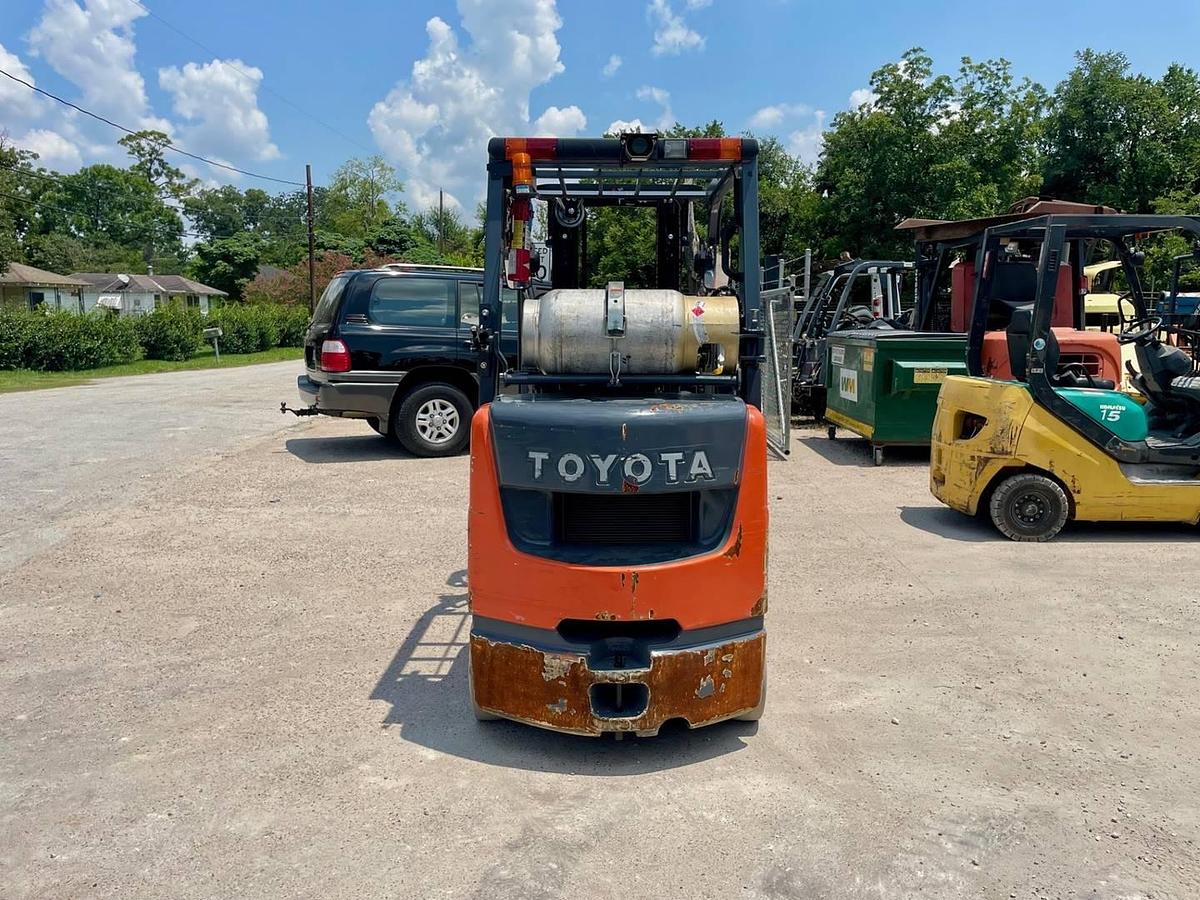

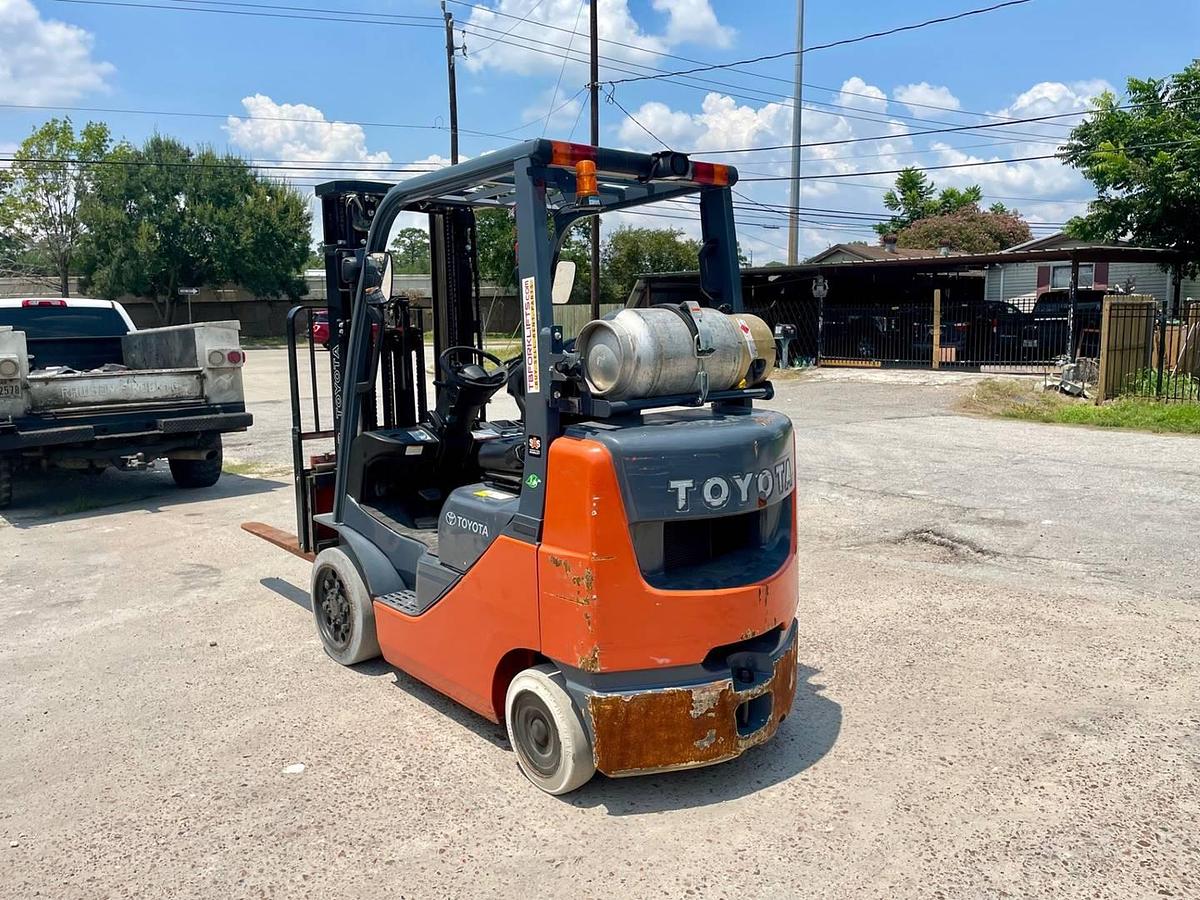

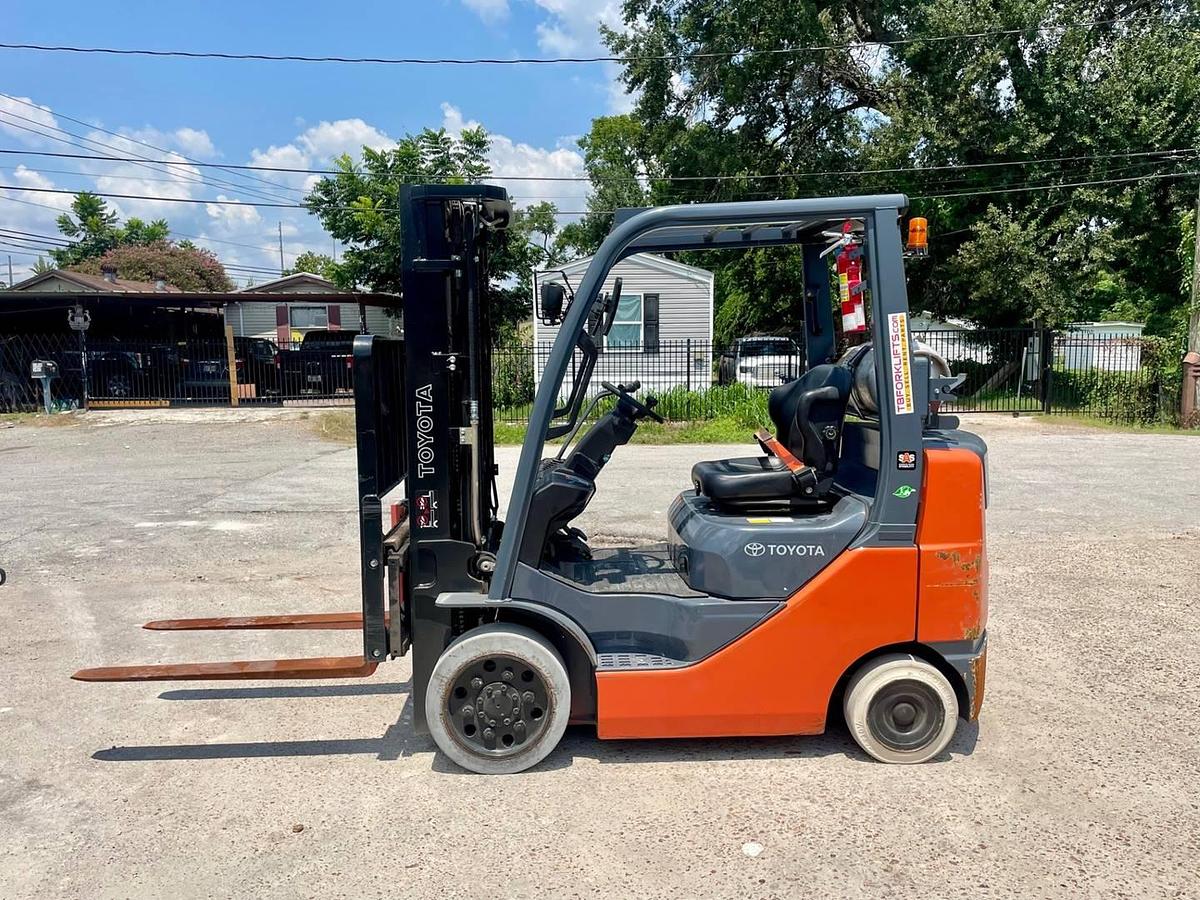

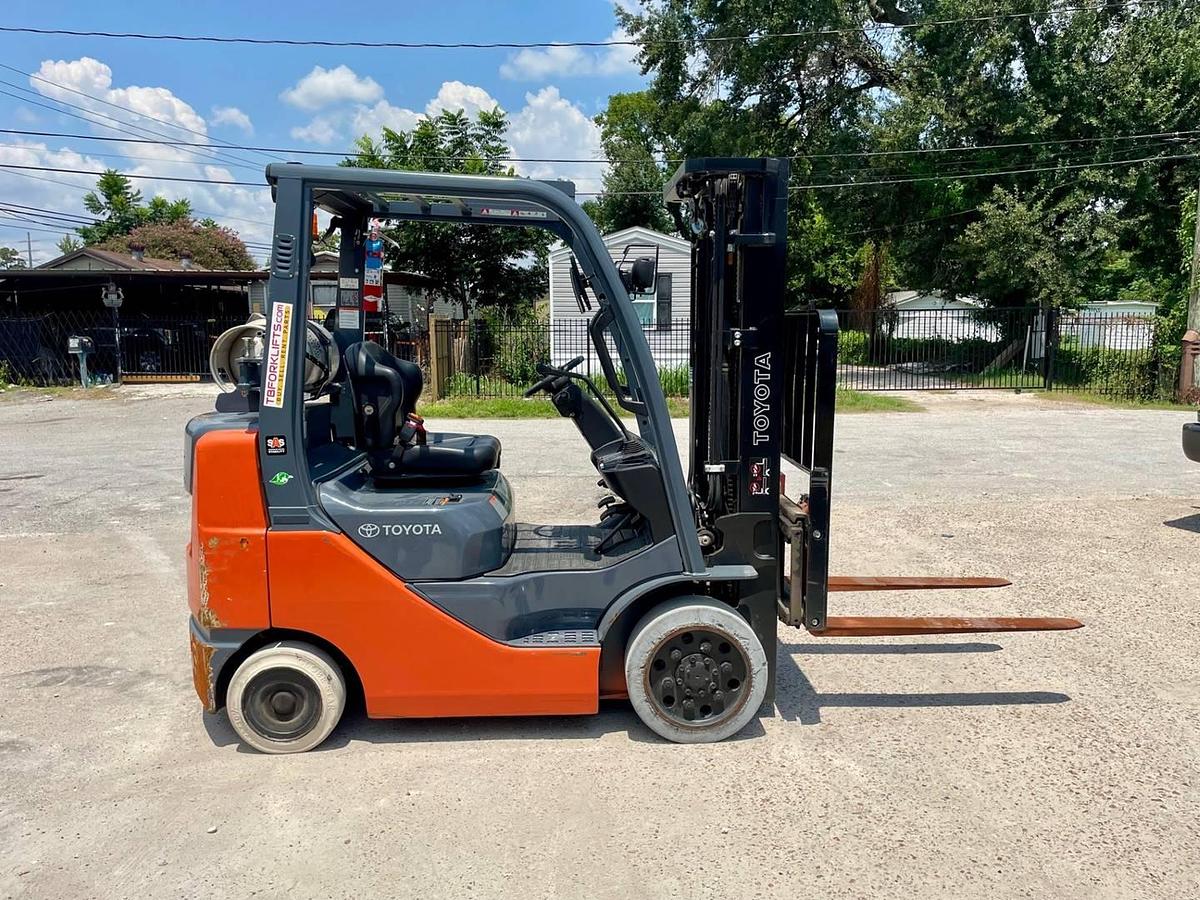

2016 Toyota 8FGCU25

2016 Toyota 8FGCU25

$18,900 (USD)

or
Call 346-646-3558

Description

LEGAL NOTICE:

  • The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate.
  • This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors.
  • We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer.
  • The information presented should not be considered definitive or relied upon as the sole basis for decision-making.
  • In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example:
  • Masts and forks are routinely changed or updated.
  • Headlights, taillights, and backup alarms are usually included with new equipment but can be removed over time.
  • Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided.
  • By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided.
  • For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.


  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
  • Power Type: LPG (Liquid Petroleum Gas)

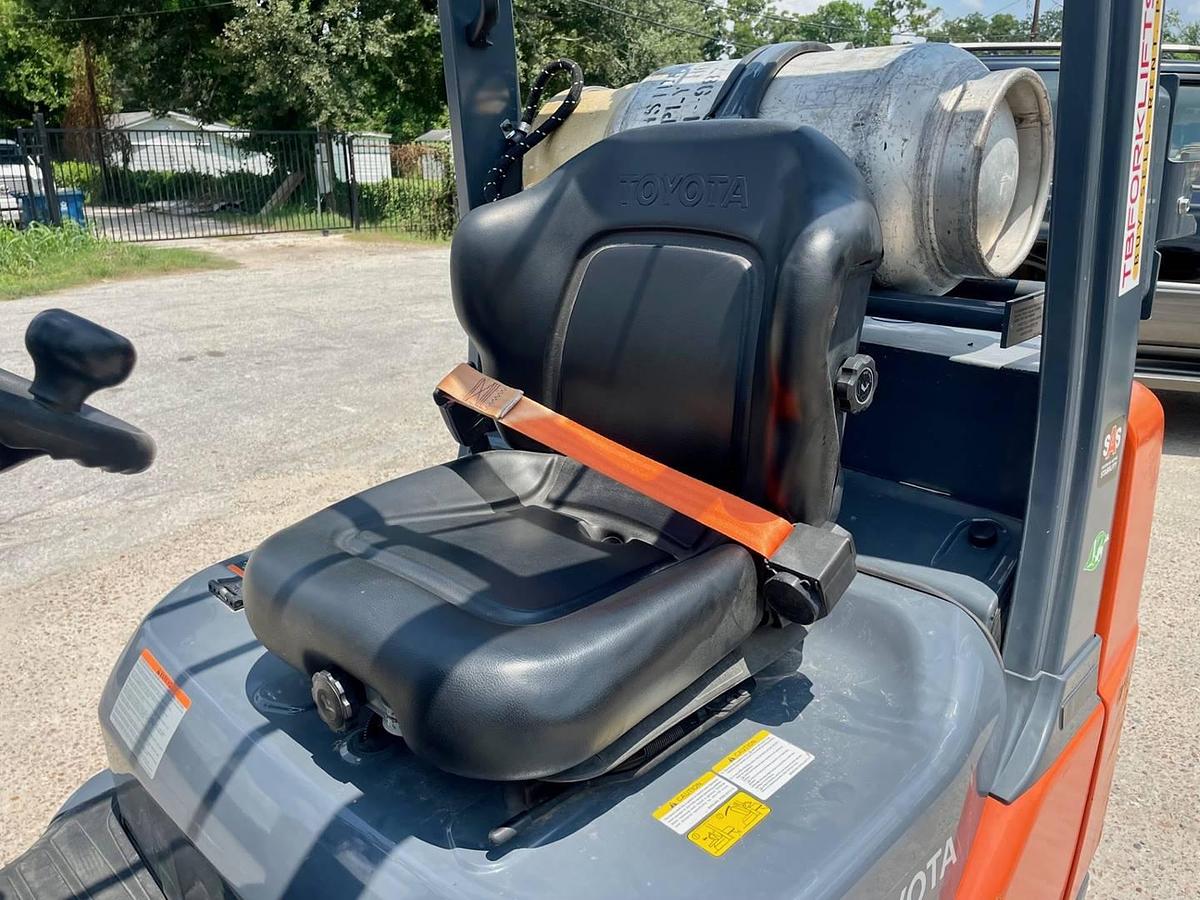

  • Operator Position: Sit-down
  • Tire Type: Cushion
  • Number of Wheels: 4
  • Dimensions:
  • Length to Face of Forks: 8.17 ft
  • Overall Width (Without Load): 3.5 ft
  • Height to Top of Overhead Guard: 7 ft
  • Turning Radius: 80.5 in
  • Minimum Outside Turning Radius: 5.5 ft
  • Wheelbase: 5.08 ft
  • Performance:
  • Rated Load Capacity: 5,000 lbs
  • Load Center: 24 in
  • Travel Speed (Loaded): 11.2 mph
  • Travel Speed (Unloaded): 11.5 mph
  • Lifting Speed (Loaded): 118 ft/min
  • Lifting Speed (Unloaded): 131 ft/min
  • Lowering Speed (Loaded): 98 ft/min
  • Lowering Speed (Unloaded): 98 ft/min

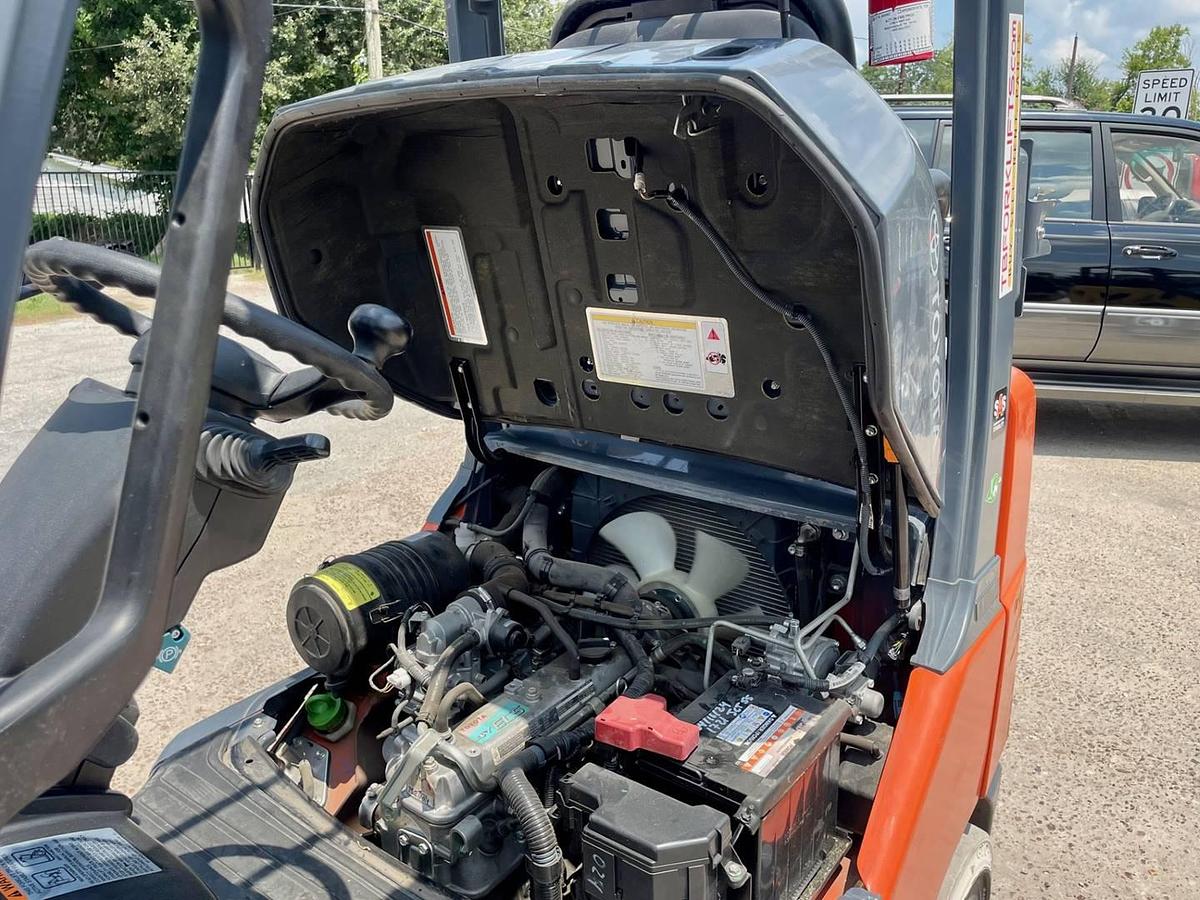

  • Engine Specifications:
  • Engine Model: Toyota 4Y
  • Engine Type: 4-cylinder, water-cooled
  • Displacement: 142 in³
  • Rated Power: 51 hp @ 2,400 RPM
  • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
  • Service Weight: 8,750 lbs
  • Axle Loading Front: 12,284 lbs (With Load)
  • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:

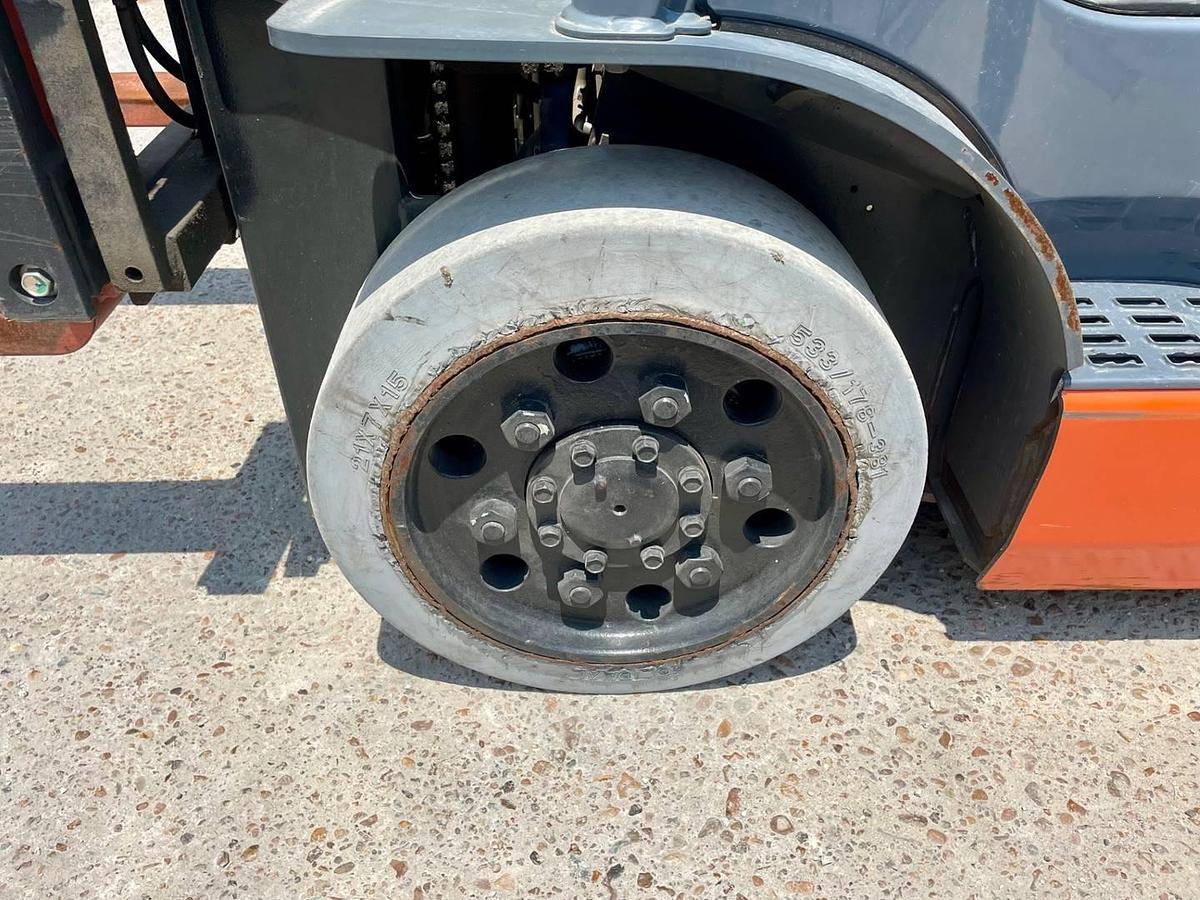

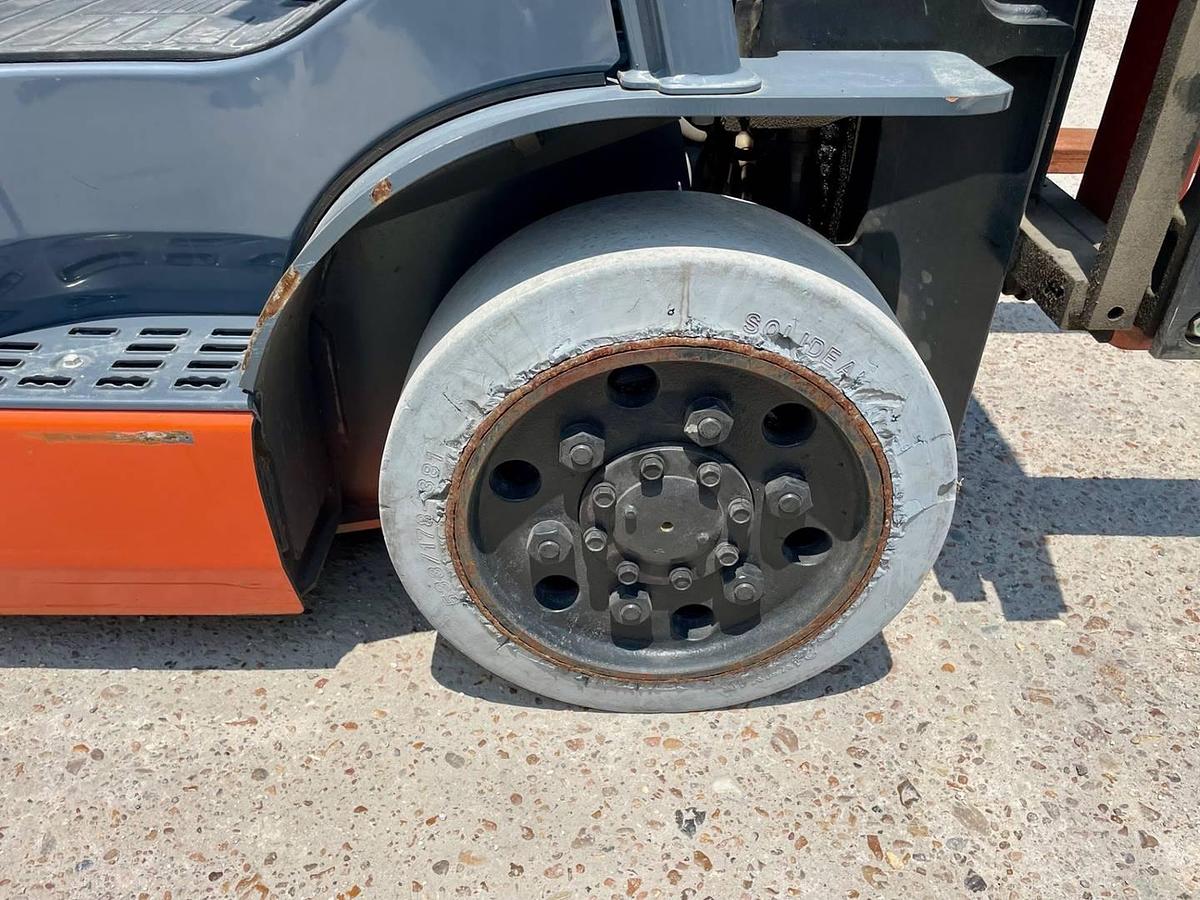

  • Front Tires: 21x7x15

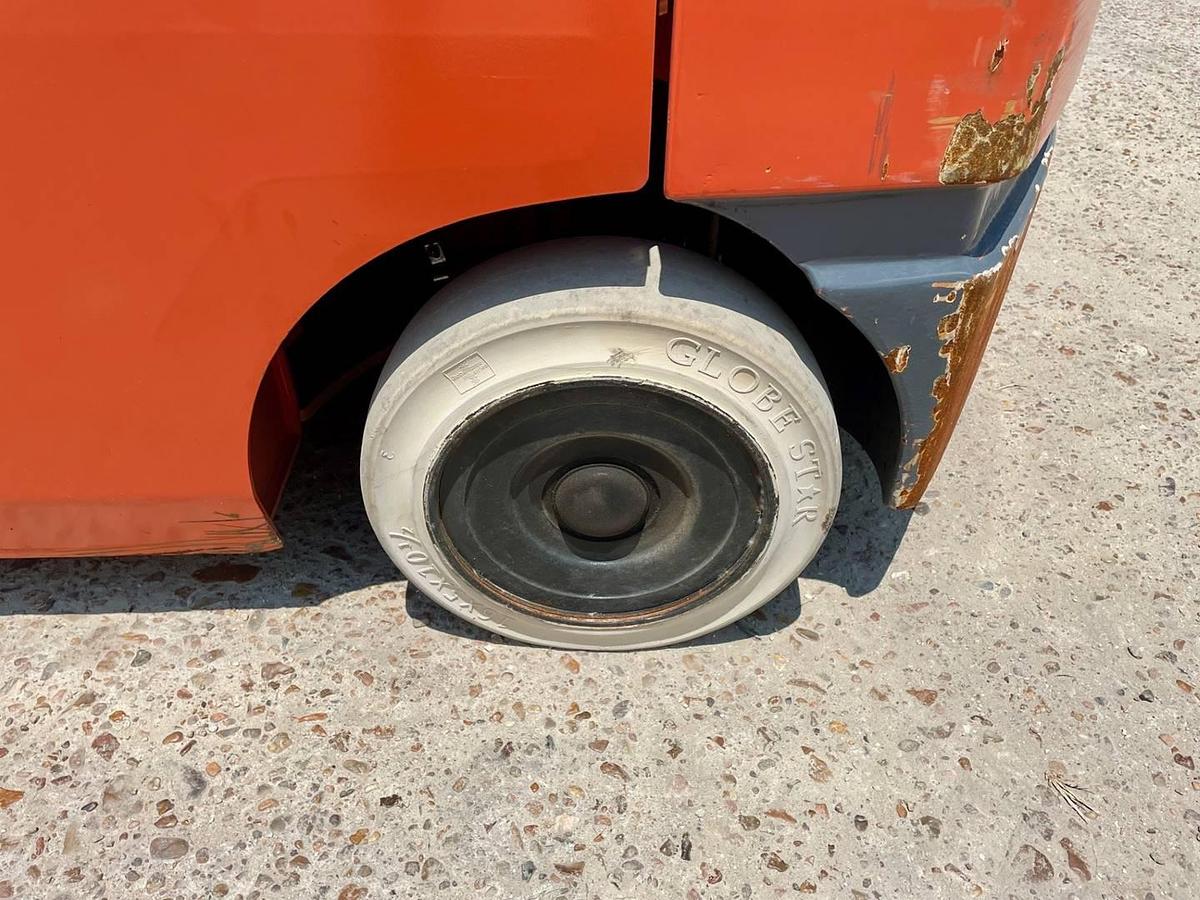

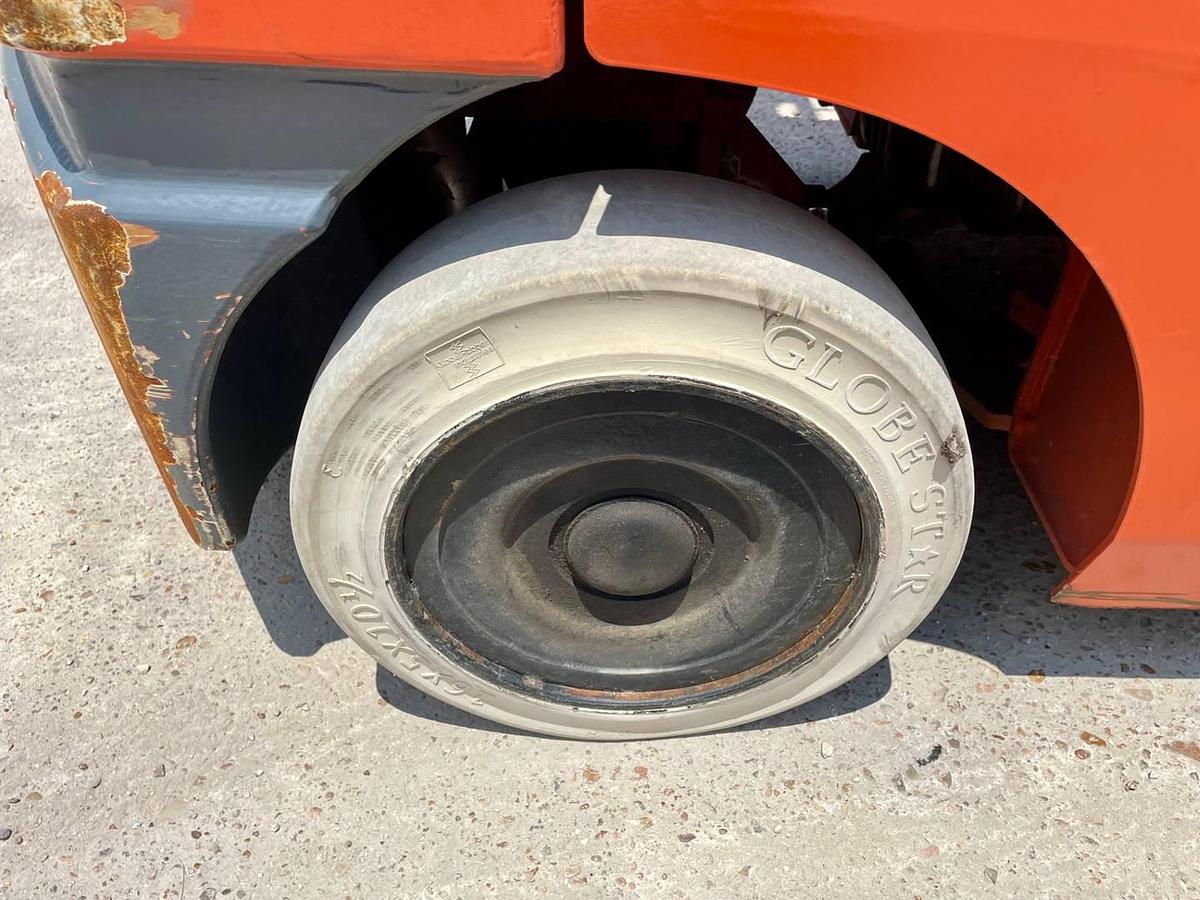

  • Rear Tires: 16x5x10 ½
  • Tread (Front/Rear): 36/36 in
  • Transmission:
  • Transmission Type: Powershift
  • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
  • Service Brake: Hydraulic
  • Parking Brake: Mechanical, hand operated

    • Show All

    Specifications

    ManufacturerToyota
    Model8FGCU25
    Year2016
    ConditionUsed

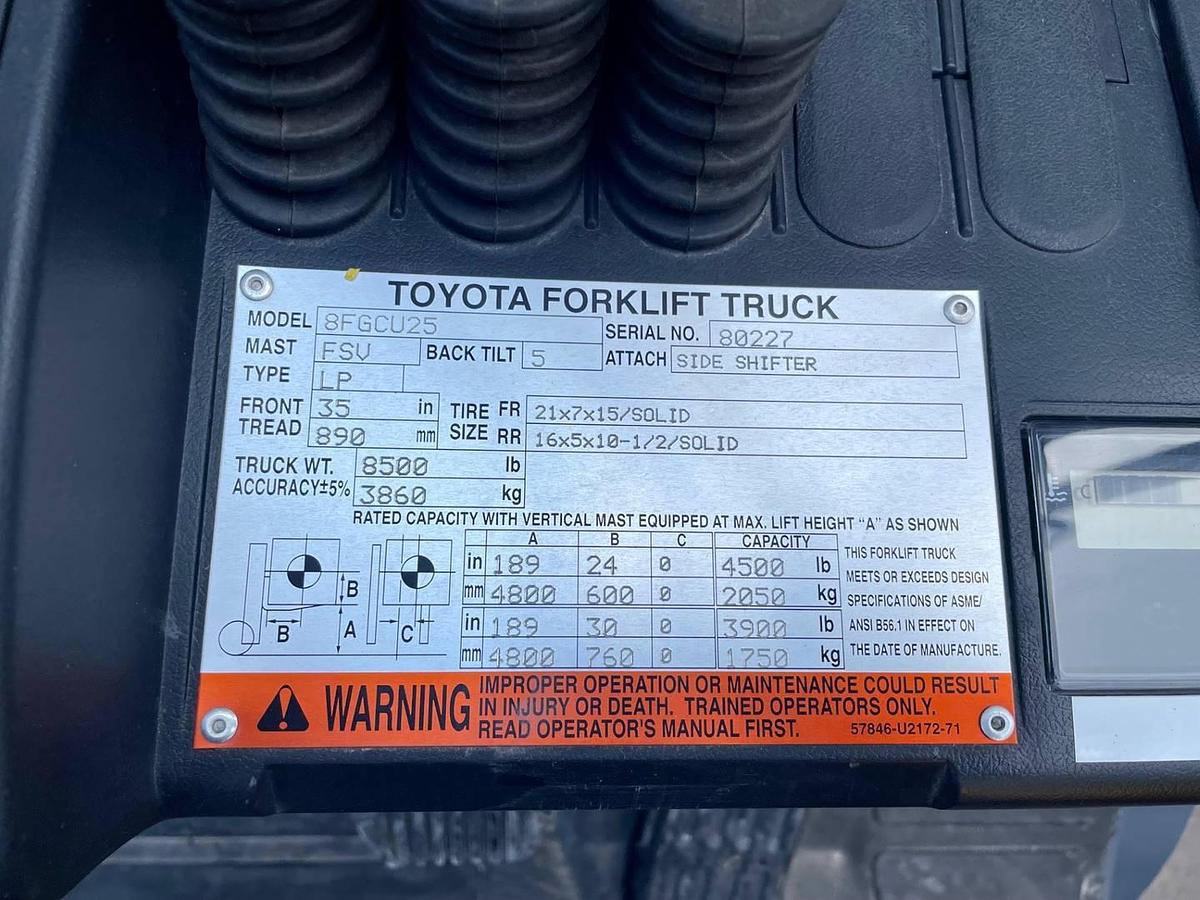

    Serial Number80227
    Stock Number80227
    Monthly Rental$1,800
    Weekly Rental$600
    Daily Rental$200
    Capacity5000

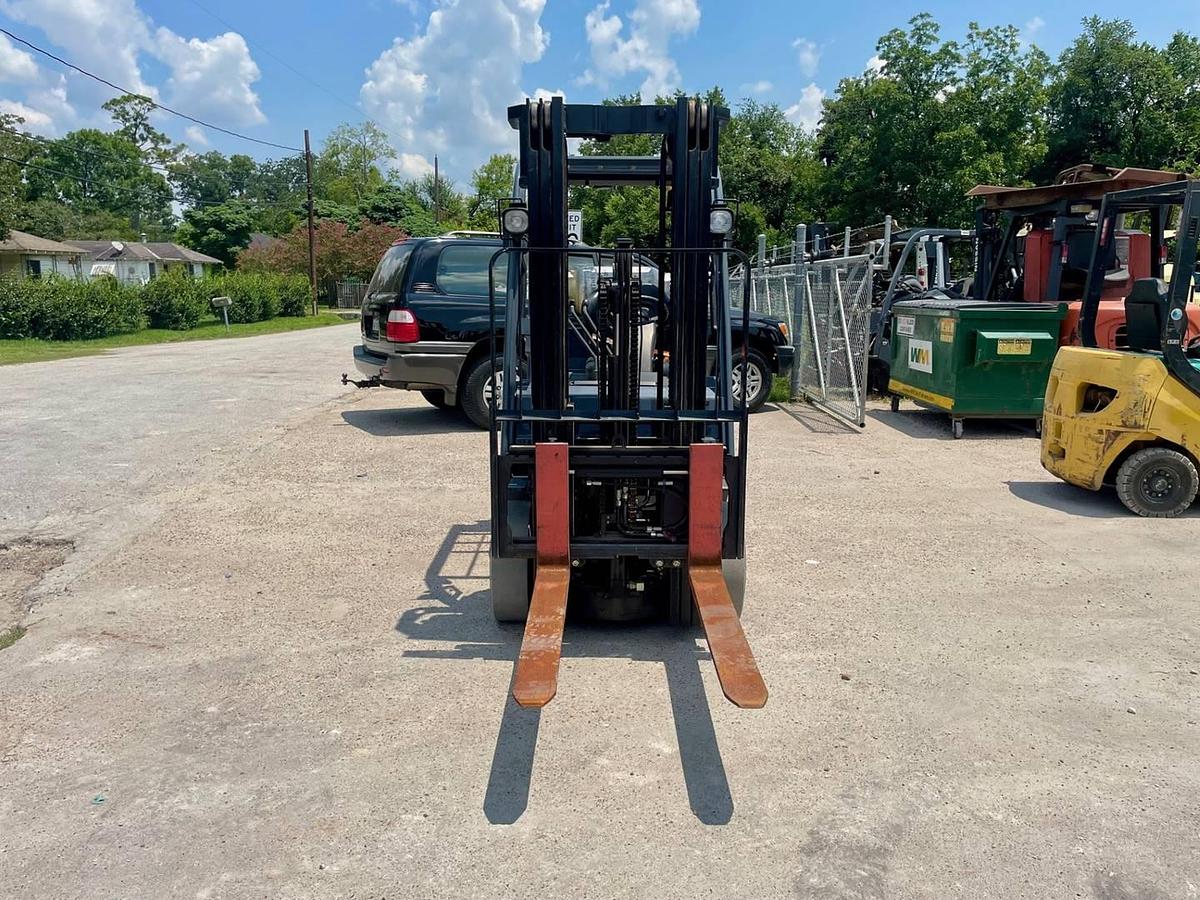

    MastThree Stage
    Mast Spec83/189
    FuelLP Gas
    AttachmentSideshifter

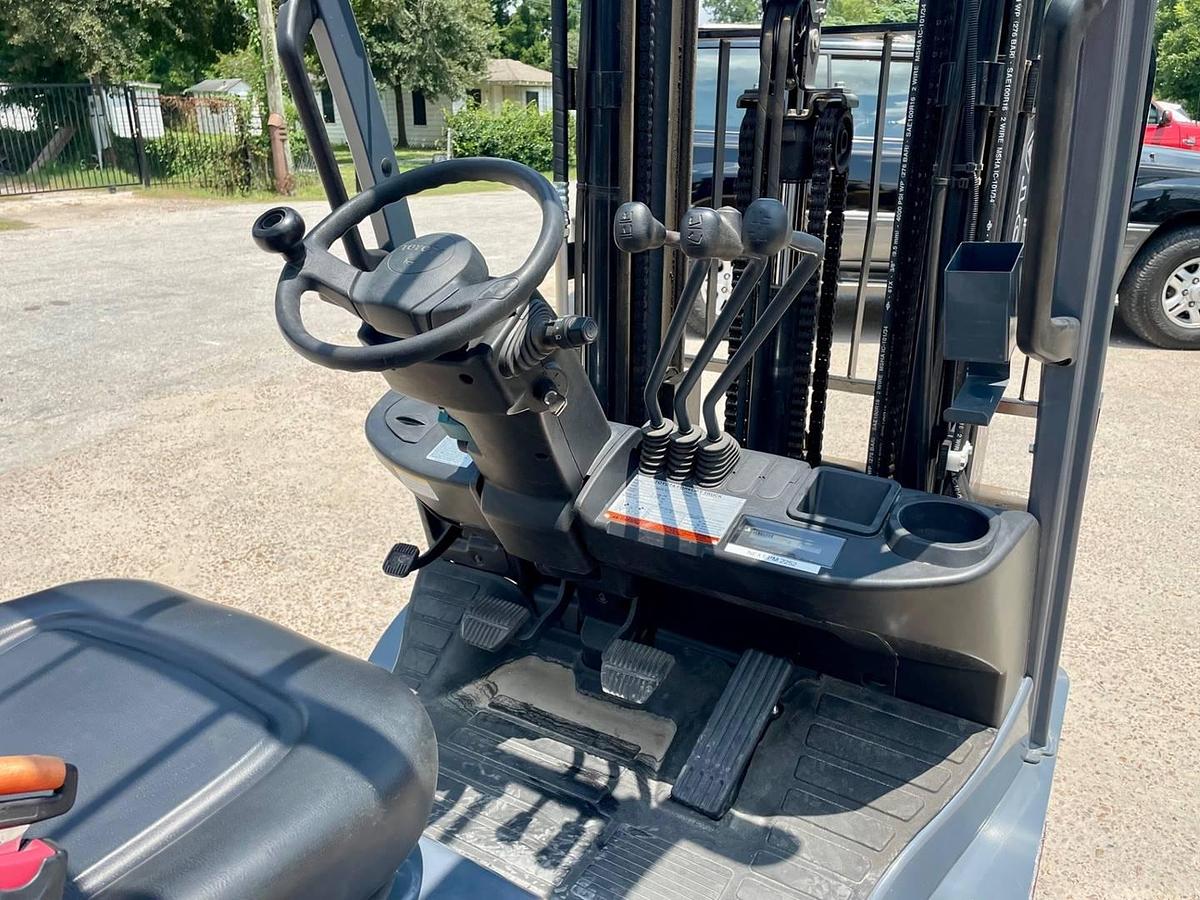

    Valves3-Way Hydraulic Valve & Hosing
    Side ShifterYes

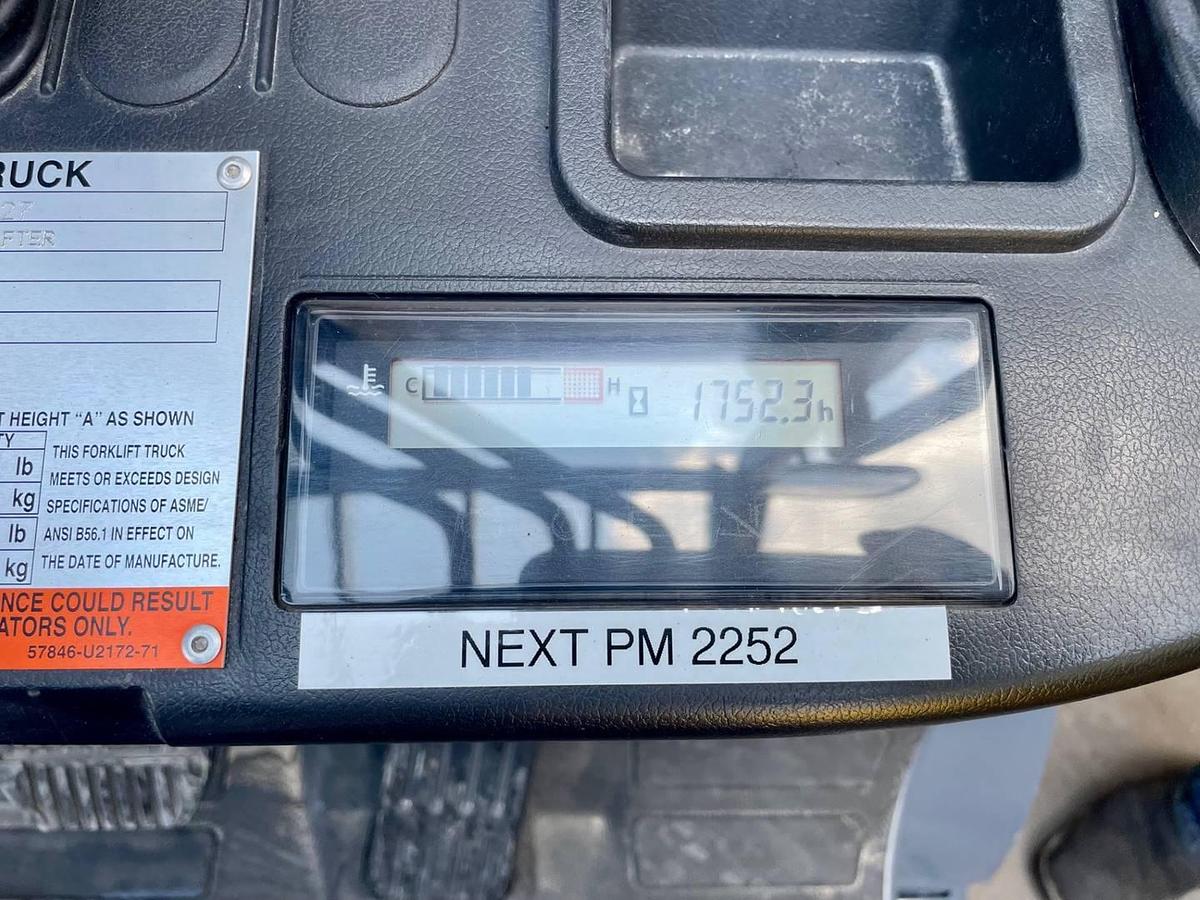

    Hours1752
